Carriage board is a small board mounted on the carriage. To remove the carriage board follow the steps below.
Note: Remove filament before removing carriage cover.
1. Remove carriage cover.

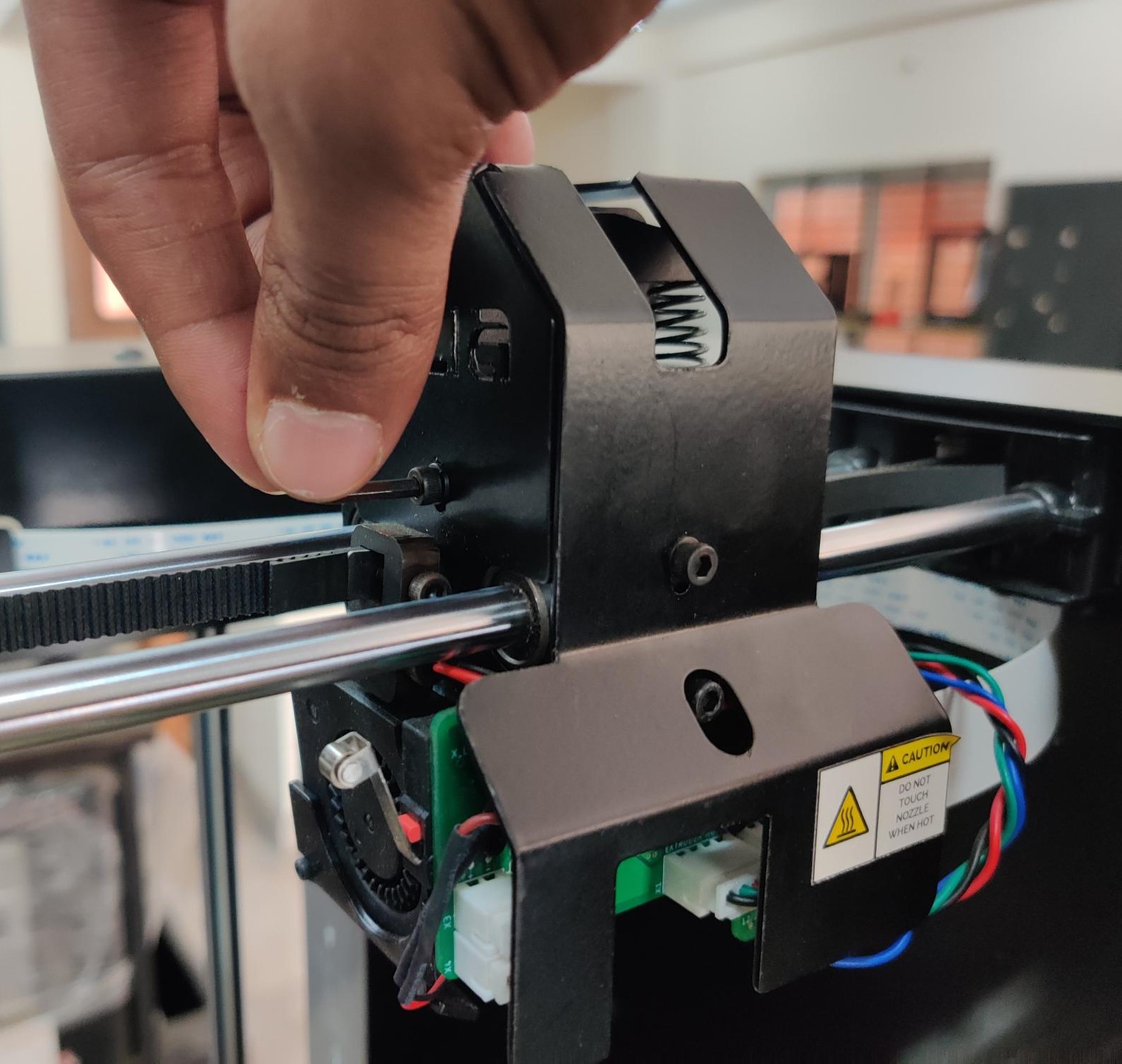

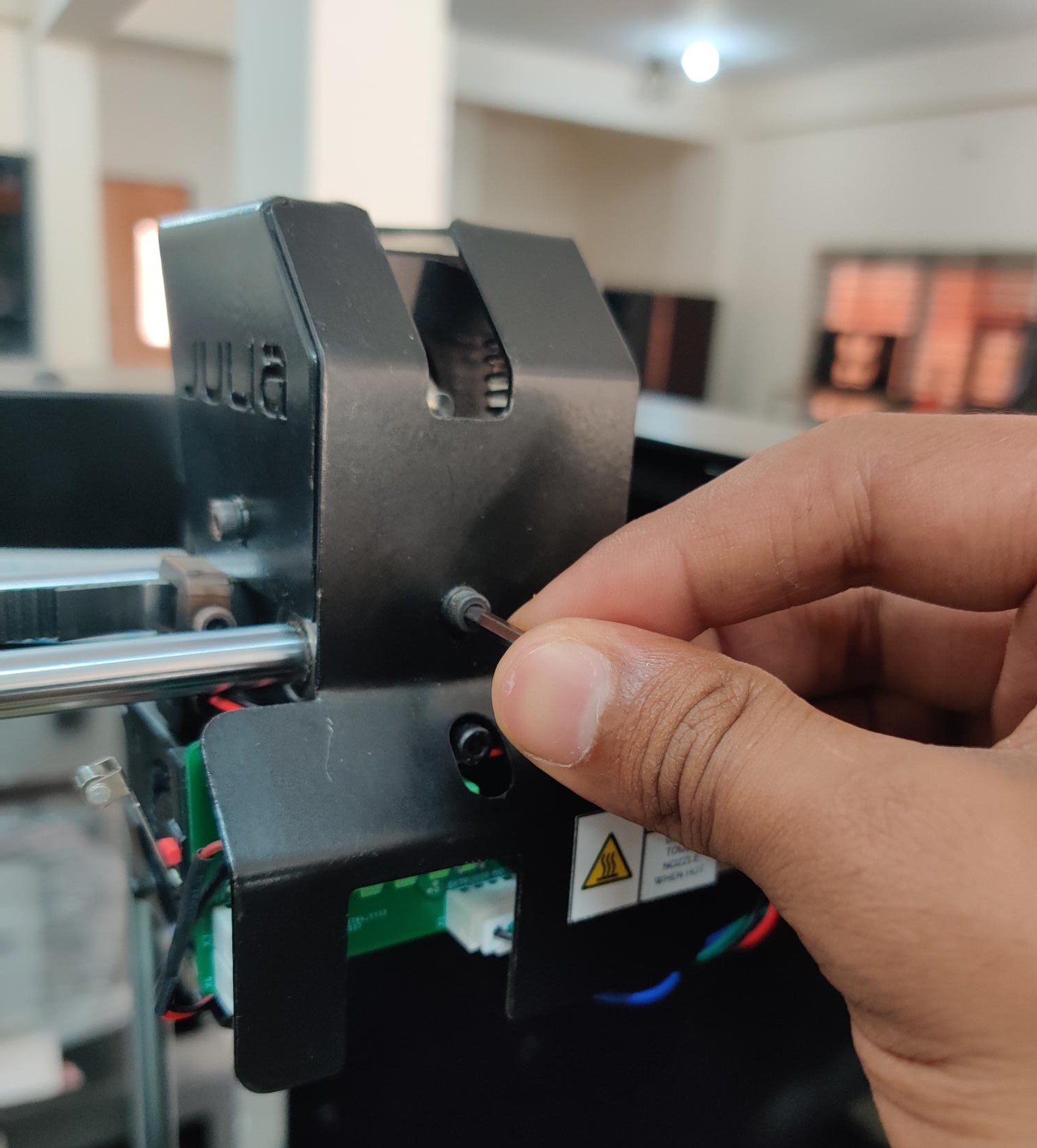

The carriage cover is fastened by 2 screws. Please be careful to not drop the split washers along the screws.

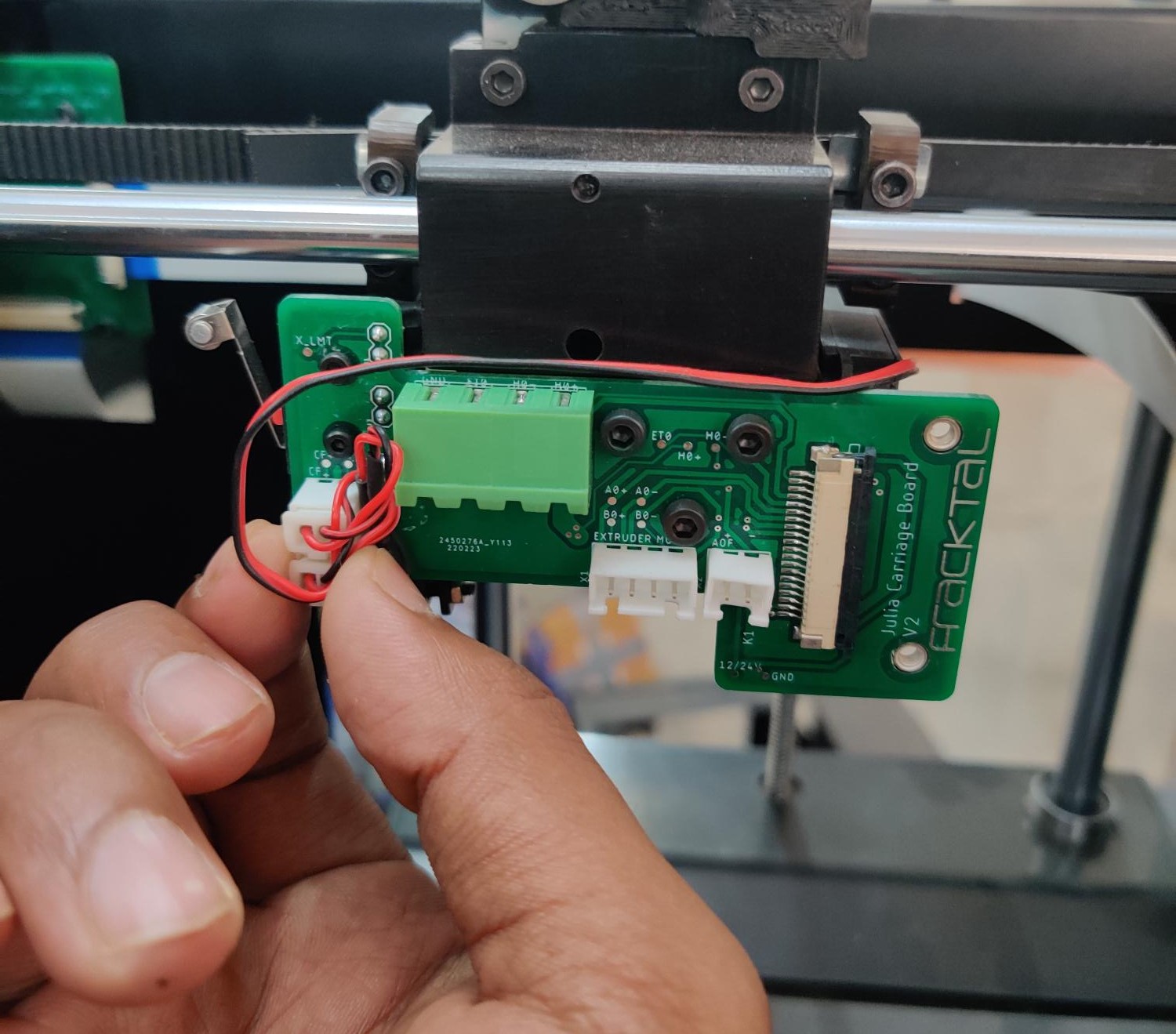

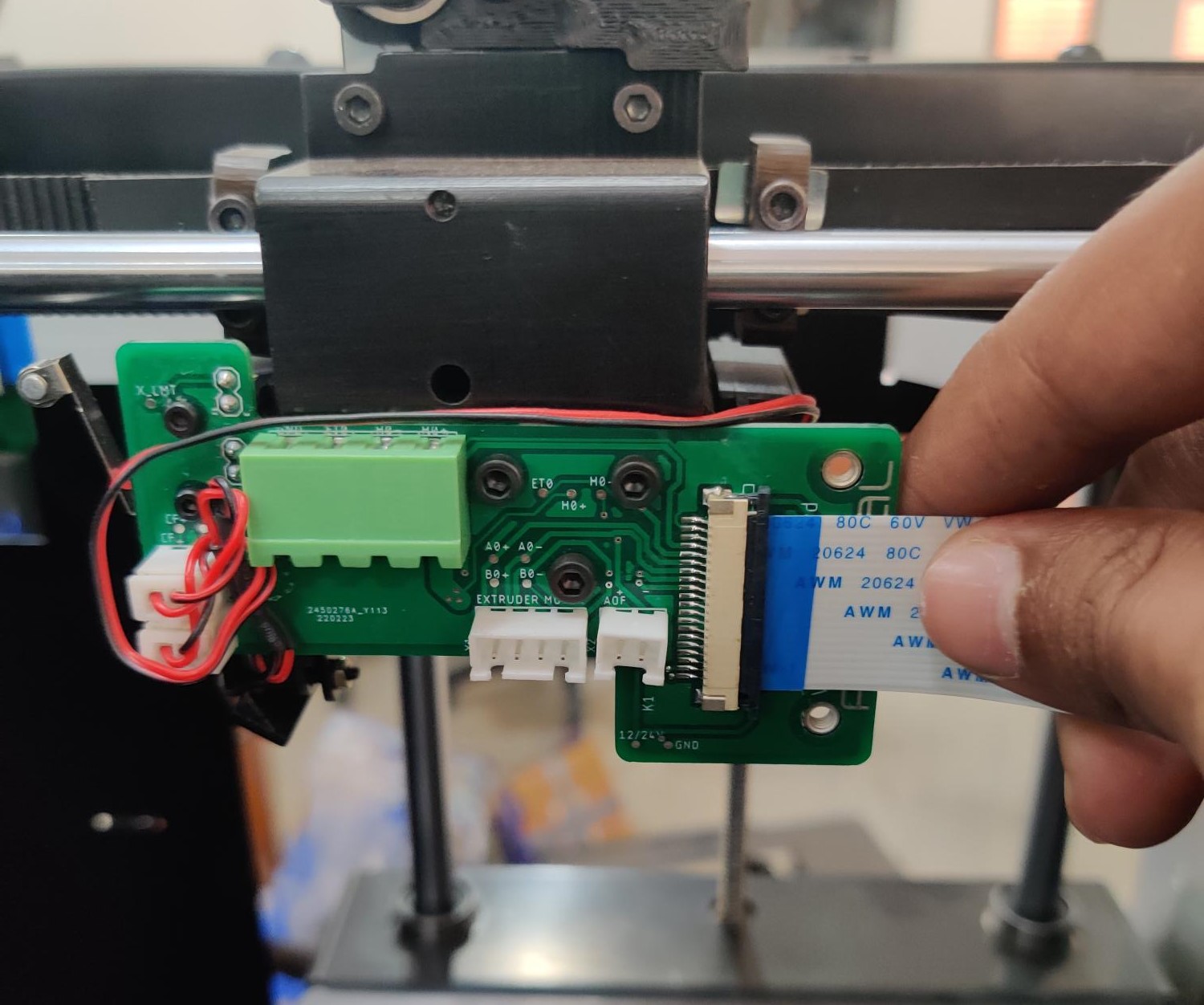

2. Remove all the wires and FFC connected to the carriage board.

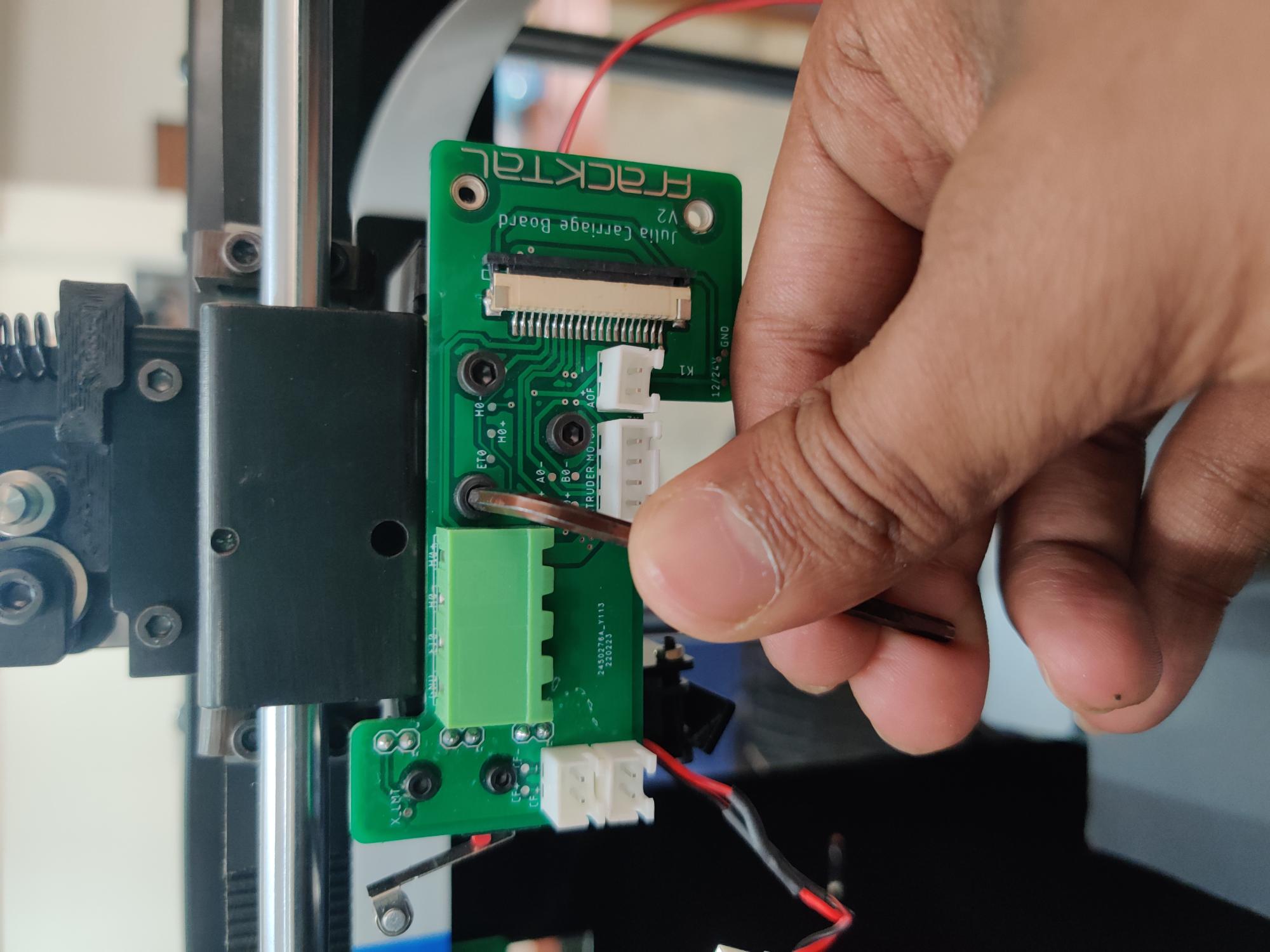

3. Once the carriage cover is removed remove the 3 screws used to fasten the carriage plate.

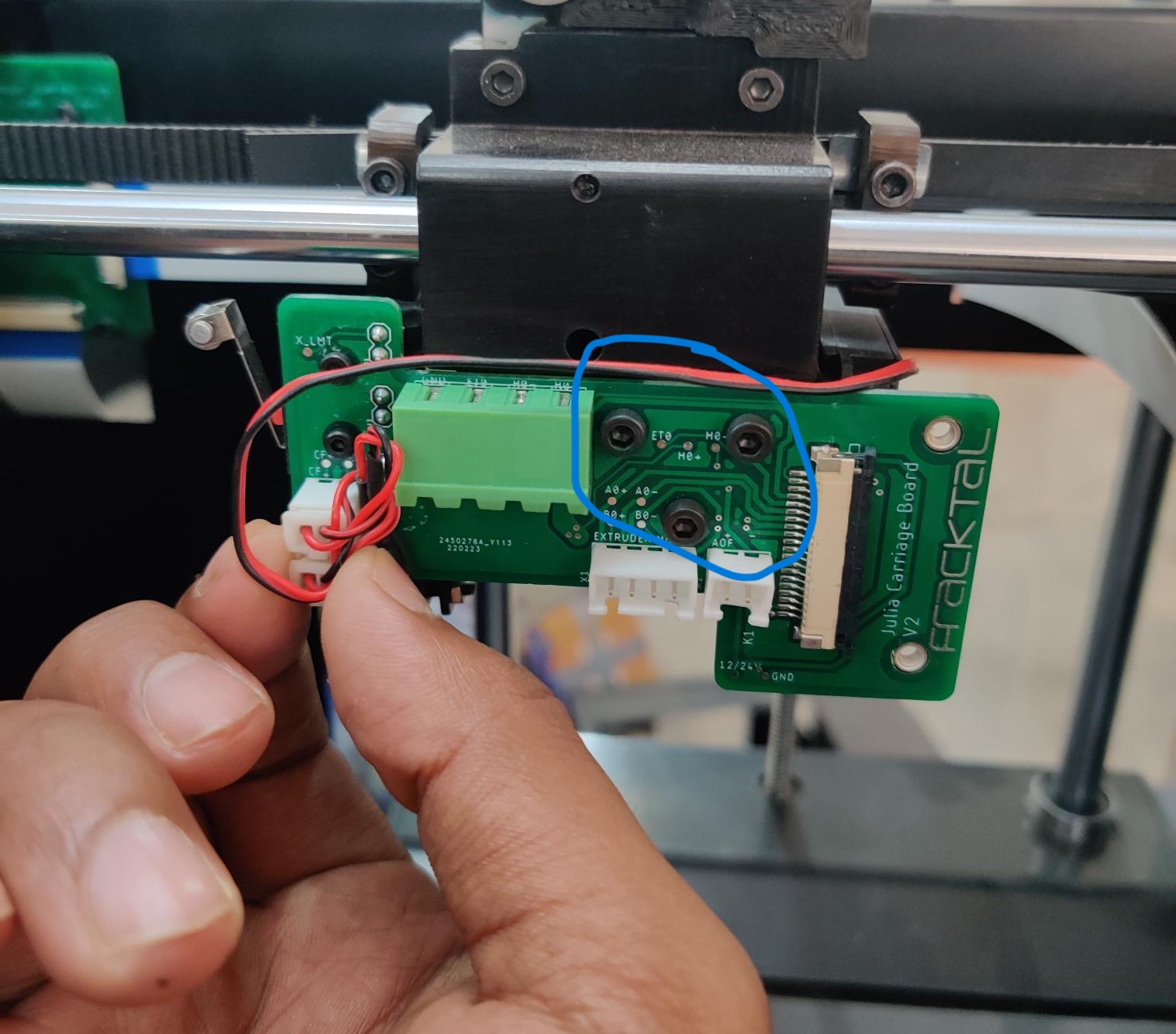

Remove all 3 screws which are encircled
