About: TPU, A brief introduction.

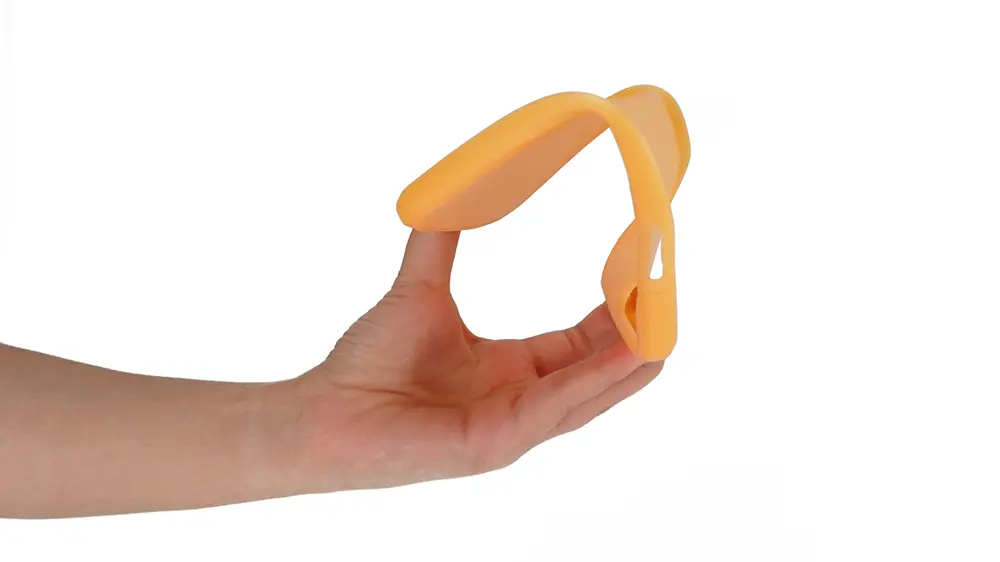

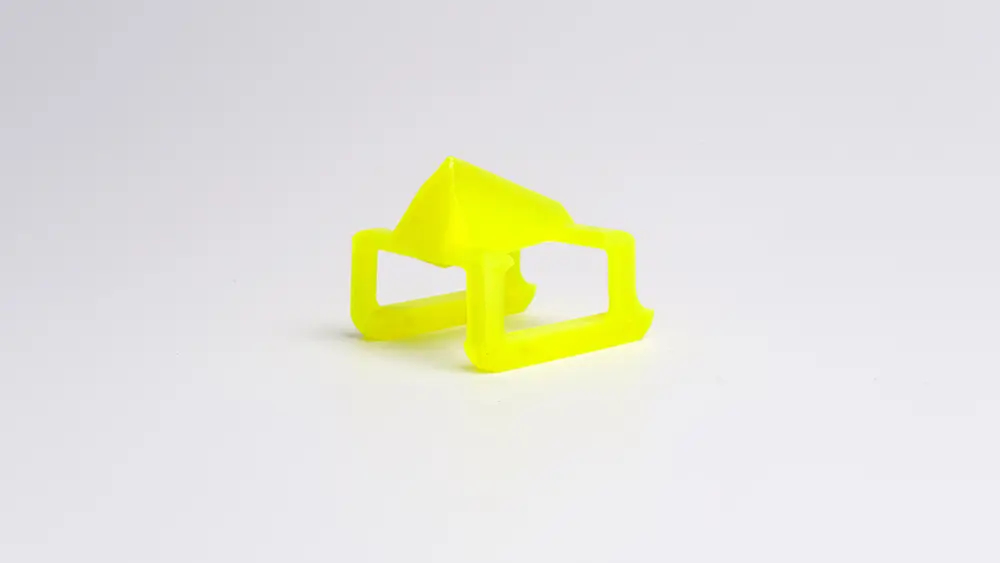

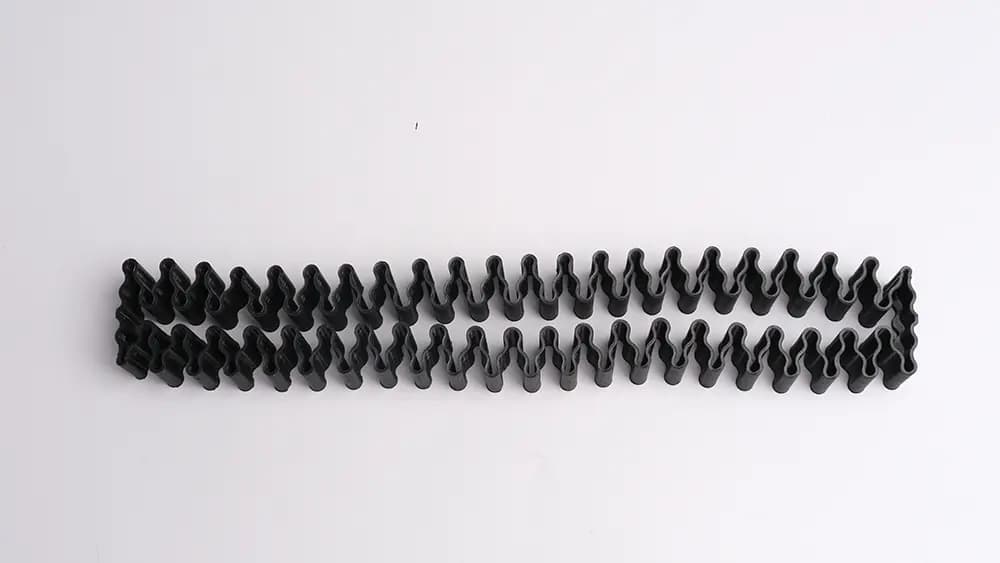

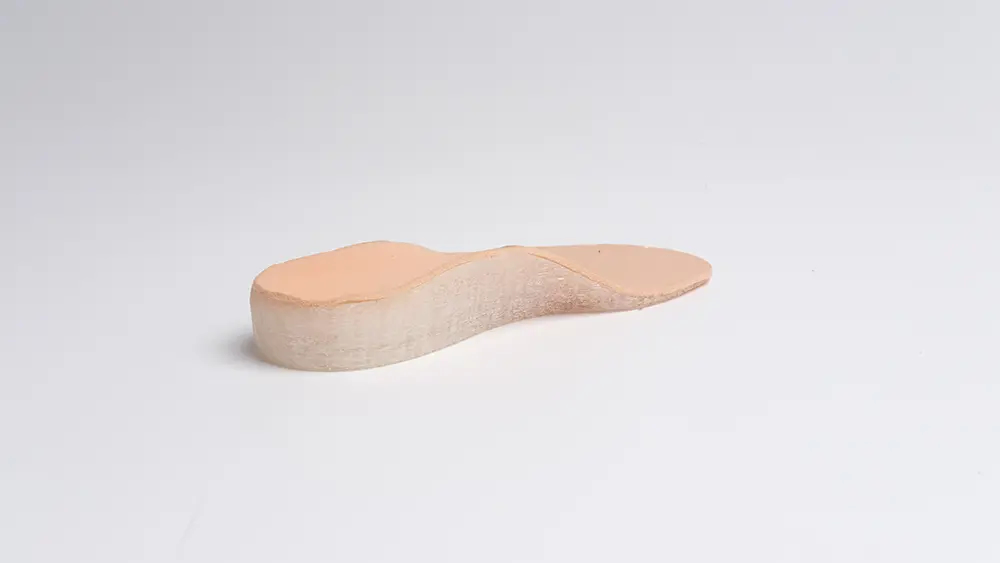

eTPU-95A has good flexibility with a hardness of 95A, easy to print, and can quickly print large, complex and accurate prototypes of elastomer parts; excellent elasticity, printed products are not easy to deform; good flexibility, high tear resistance and wear resistance and cut resistance, sturdiness and durability; high hardness and good resilience, can be used for insoles and other applications.
|Filament Properties Table|
|3D PRINTING FILAMENT||eTPU-95A|
|Heat Distortion Temp(℃,0.45MPa)||/|
|Melt Flow Index(g/10min)||1.2(190℃/2.16kg)|
|Elongation at Break(%)||≥800|
|IZOD Impact Strength(kJ/㎡)||/|
|Recommended printing parameters|
|Extruder Temperature(℃)||220 – 250℃|
|Bed temperature(℃)|| 45 – 60°C|
|Fan Speed|| 100%|
|Printing Speed|| 20 – 50mm/s|
|Heated Bed|| Optional|
|Recommended Build Surfaces||Masking paper, PVP solid glue, PEI|
| UV Resistant||——|
|Heated Bed Required||——|
|Print recommend||Drying at 55℃/>4h, short-range extruder, slow printing|
