About: PET-G, A brief introduction.
PETG is a high cost performance material with water resistance, chemical resistance and high toughness. It’s tougher than ABS; The printed product has translucent and smooth surface. It’s easy to print as PLA without temperature chamber.
Properties:
Filament Properties Table |
---|
3D PRINTING FILAMENT | PETG |
---|
Density(g/cm3) | 1.27 |
---|
Heat Distortion Temp(℃,0.45MPa) | 64 |
---|
Melt Flow Index(g/10min) | 20(250℃/2.16kg) |
---|
Tensile Strength(MPa) | 52.2 |
---|
Elongation at Break(%) | 83 |
---|
Flexural Strength(MPa) | 58.1 |
---|
Flexural Modulus(MPa) | 1073 |
---|
IZOD Impact Strength(kJ/㎡) | 4.7 |
---|
Durability | 8/10 |
---|
Printability | 9/10 |
---|
Recommended printing parameters |
---|
Extruder Temperature(℃) | 230 – 250℃ Recommended temperature:240℃ |
---|
Bed temperature(℃) | 75 – 90°C |
---|
Fan Speed | 100% |
---|
Printing Speed | 40 – 100mm/s |
---|
Heated Bed | Required |
---|
Recommended Build Surfaces | Masking paper, PVP solid glue |
---|
| |
Feature |
---|
Flexible | —— |
---|
Elastic | —— |
---|
Impact Resistant | —— |
---|
Soft | —— |
---|
Composite | —— |
---|
UV Resistant | —— |
---|
Water Resistant | √ |
---|
Dissolvable | —— |
---|
Heat Resistant | —— |
---|
Chemically Resistant | √ |
---|
Fatigue Resistant | √ |
---|
Need drying | —— |
---|
Heated Bed Required | √ |
---|
Print recommend | Drying at 65℃/>3h |
---|

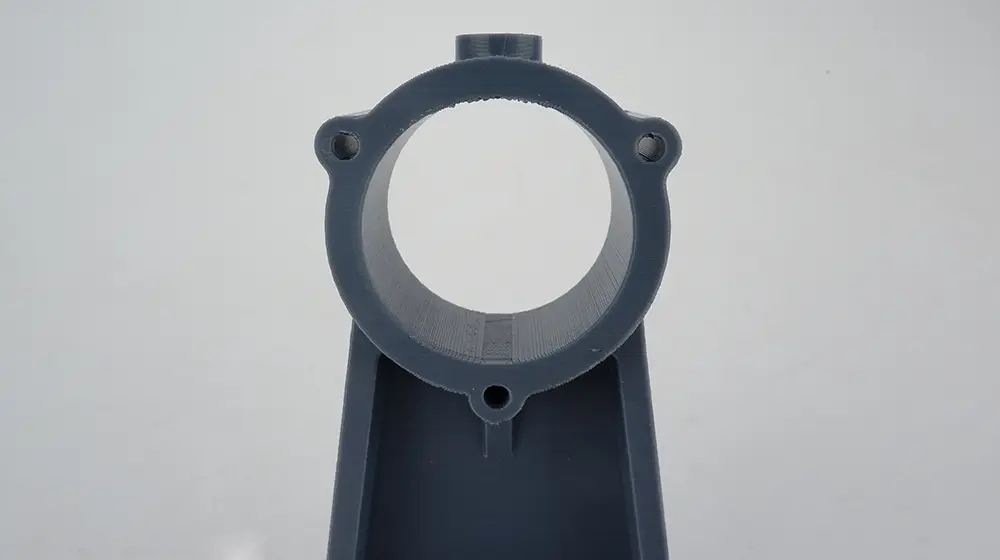

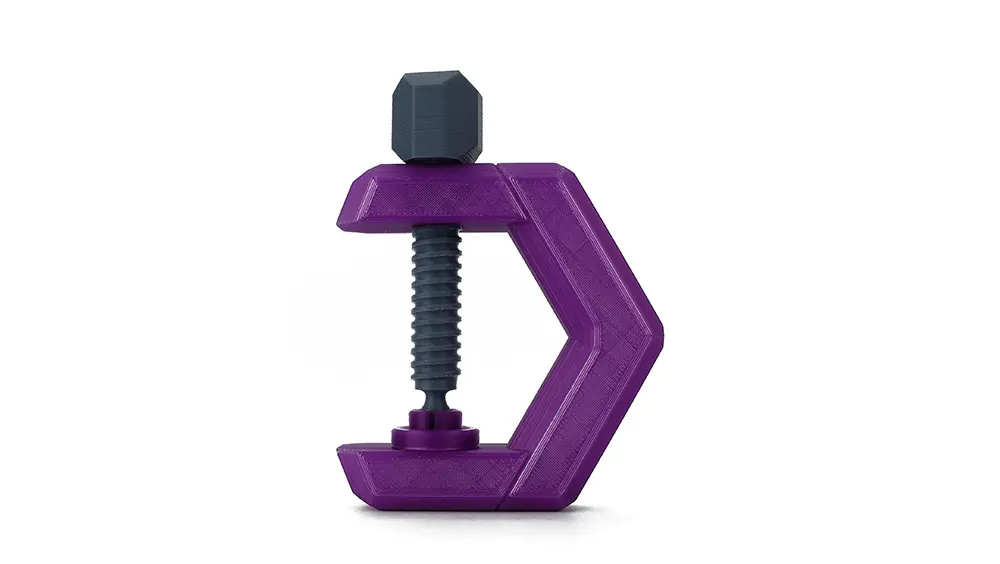

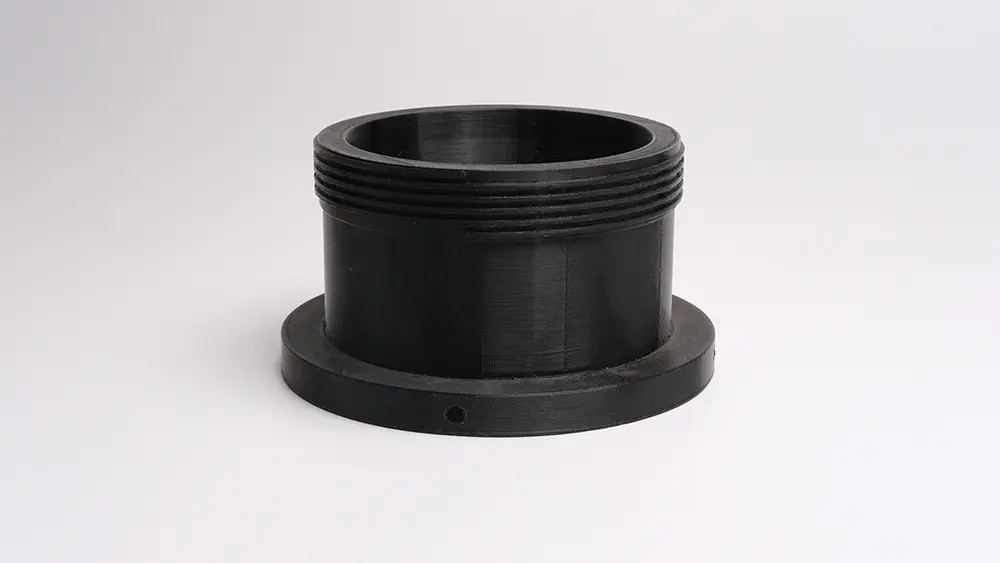

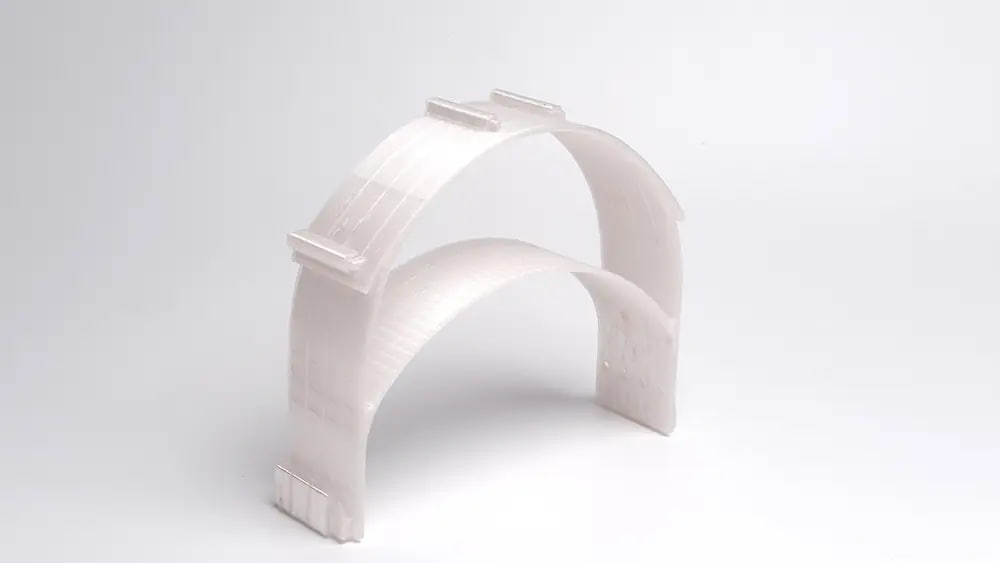

Sample Print images:
